Introduction: The Crossroads of Fully Automatic Block Production Line Investment

For large-scale building material manufacturers and government contractors, investing in a fully automatic block production line is not just equipment procurement — it is a long-term strategic decision.

After operating semi-automatic or entry-level systems, many well-funded buyers eventually face a critical upgrade question:

Should I choose an open-loop fully automatic block production line or a closed-loop system?

Both configurations belong to industrial-grade, high-output solutions. However, they differ significantly in:

Initial investment level

Factory layout requirements

Labor dependency

Real daily production efficiency

Long-term ROI

Based on real project data and engineering experience from ZCJK, this guide explains the structural and financial differences so you can determine which production line configuration delivers higher ROI for your market.

Core Structural Difference Between Open-Loop and Closed-Loop Block Production Lines

The essential difference lies in how wet blocks are transferred and cured after molding.

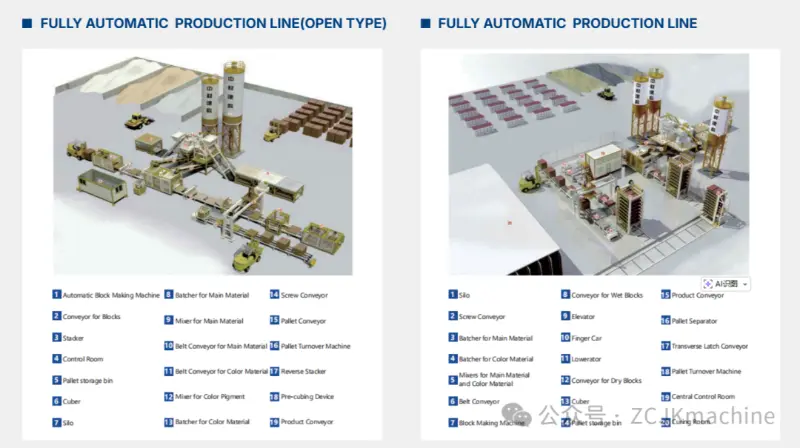

Fully Automatic Open-Loop Block Production Line

ZCJK’s Fully Automatic Production Line (Open Type) includes approximately 19 core components. After molding, wet blocks are stacked automatically.

However, a forklift operator must transport stacked wet blocks to a natural curing yard.

The curing process relies on open-air or shed-based natural curing.

Fully Automatic Closed-Loop Block Production Line

ZCJK’s Fully Automatic Production Line includes approximately 20 core components.

Instead of stacking wet blocks outdoors, the finger car transfers pallets directly into a controlled curing chamber. No forklift is required for wet block transfer. This creates a seamless 24/7 circulation system.

Production Line Data Comparison: Land, Labor & Capacity

Using ZCJK’s popular industrial models (ZC900 and ZC1000) as reference:

A. Factory Land Requirement

For both open-loop and closed-loop fully automatic block production lines, the detailed comparison data are shown in the figure below:

Important note:

Although total ground area may be similar, closed-loop systems require higher factory roof clearance due to vertical curing chambers.

B. Labor Requirement Comparison

A fully automatic block production line generally requires 3–5 workers.

Open-loop system: 4–5 workers. Includes forklift driver for wet block transportation

Closed-loop system: 2–3 workers. Control room operator + inspection. No forklift driver required

In regions where labor cost is rising, this difference significantly affects long-term operational expense.

C. Capacity & Efficiency Comparison

(Reference: NCMA statistics and global industry observations)

With the same main molding machine:

A closed-loop fully automatic block production line typically achieves 15–30% higher real daily output compared to open-loop systems.

Reasons:

No forklift speed limitation

No driver fatigue factor

Continuous pallet circulation

Accelerated curing cycleReduced wet block damage

This results in more stable monthly output and higher annual ROI.

D. Investment Level Comparison (Open-Loop vs Closed-Loop)

From an investment perspective:

Open-loop system:

Lower initial capital requirement

No curing chamber investment

Suitable for markets with lower labor costs

Faster initial payback in developing regions

Closed-loop system:

Higher upfront investment (curing chamber + transfer system)

Reduced long-term labor cost

Higher capacity utilization

Better block strength consistency

Suitable for government and infrastructure projects

For investors planning long-term expansion and premium market positioning, the closed-loop production line often demonstrates superior ROI over a 5–10 year horizon.

Target Market Recommendation by Region

Based on project experience from ZCJK’s global installations:

Recommended for Open-Loop Systems

Suitable for: Africa (e.g., Uganda, Tanzania), Parts of Southeast, Asia.

Why:

Lower land and labor costs

Lower upfront investment

Faster startup

Flexible expansion

Recommended for Closed-Loop Systems

Suitable for: Middle East, South America, Government contractors in Southeast Asia

Why:

Rising labor cost

Strict municipal block standards

Need for high-strength pavers

Weather-independent production

Real Project Case: ZC1500 Closed-Loop Installation

production line

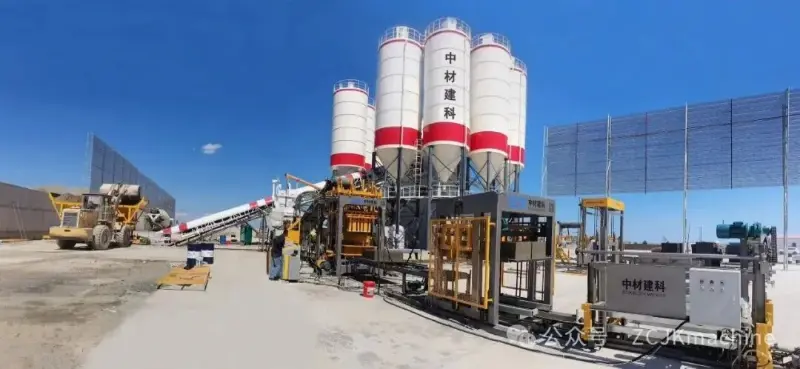

ZC1500 fully automatic closed-loop block production line with finger car installed at client site.

A large-scale building material manufacturer partnered with ZCJK to install a fully automatic closed-loop block production line based on the ZC1500 model.

The client selected the closed-loop system to:

Reduce labor reliance

Increase production stability

Achieve consistent block strength

Meet government infrastructure standards

Today, this factory operates as one of the most automated and productive block plants in its region.
